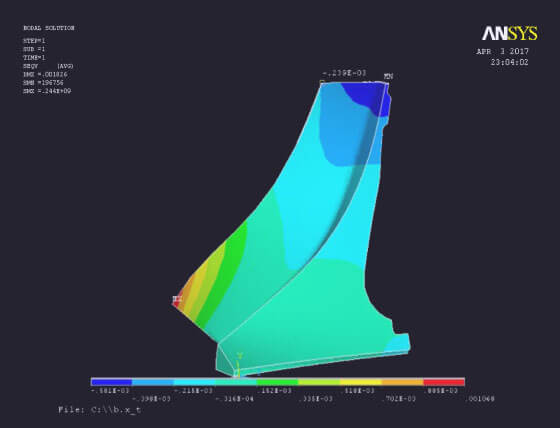

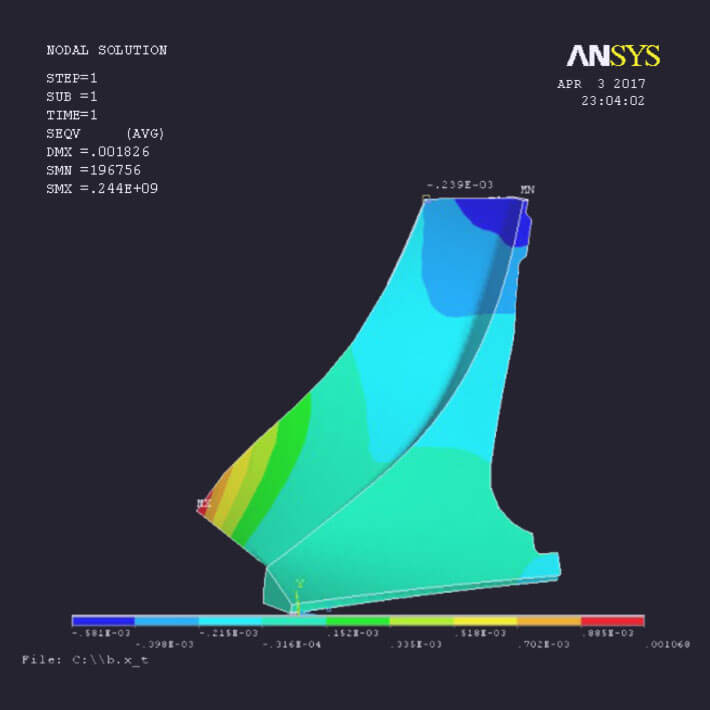

Designed in ANSYS for
improved impeller
aerodynamics
Capacity Control

GEAR SET:

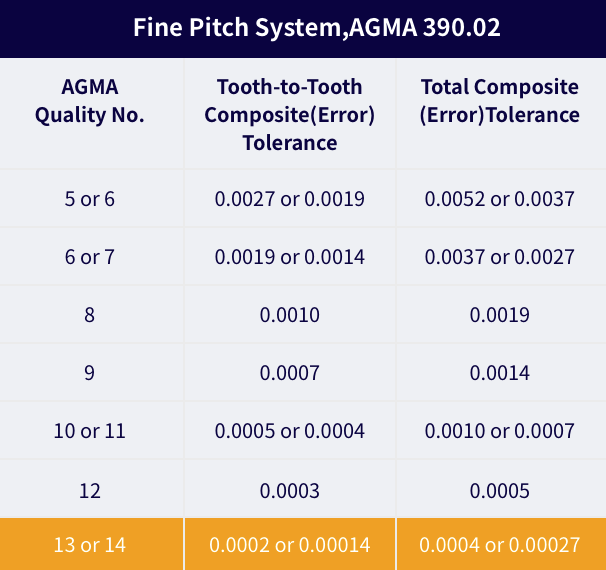

AGMA Q13 Standard uses precision gear manufacturing techniques to provide extreme efficiency with lower mechanical losses and lower noise levels.

*Bison turbo uses AGMA Q13 gear which is over 30% more precise than grade 12 gear.

Thrust Collars

Centrifugal design to provide improved efficiency and power saving.

Thrust collars on pinion shaft create an oil wedge, which carries the huge remaining net thrust to the bull gear where it is absorbed by a simple low-speed thrust bearing.

Reduced power loss from gearbox.

Increased structural integrity.

BEARING

Engineered for Increased
Reliability

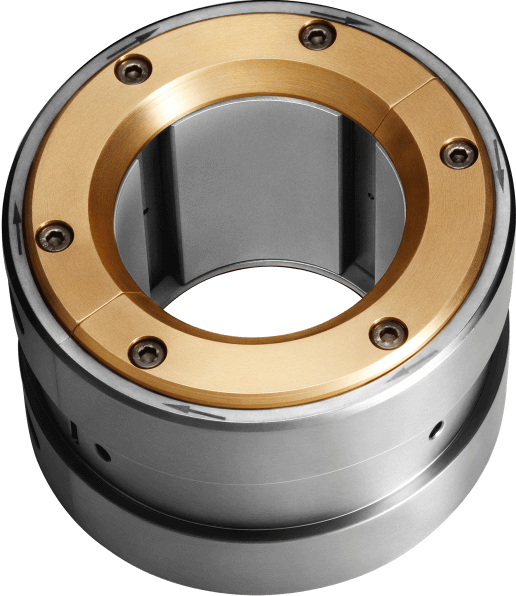

Tiling Pad Bearing

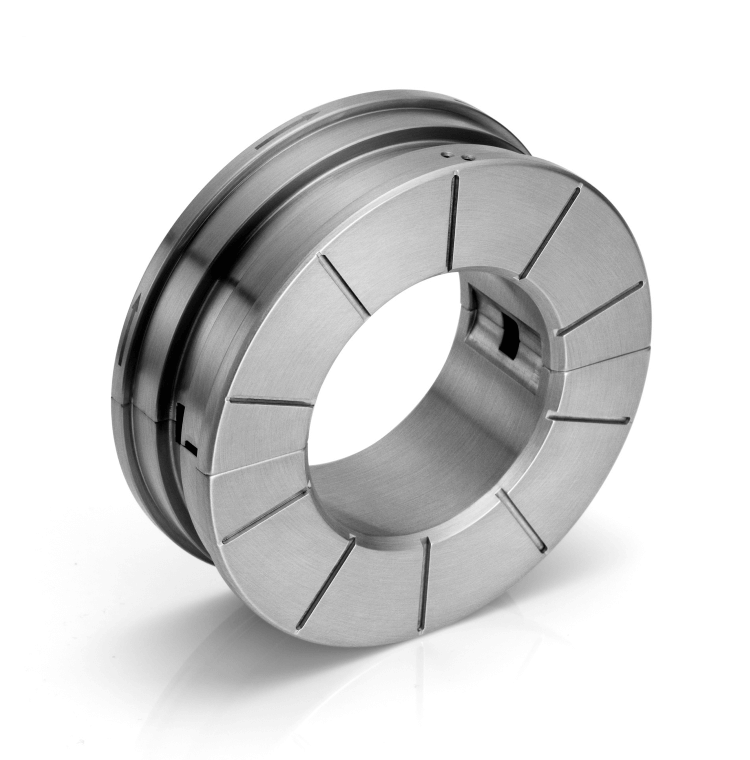

Tilting pad bearing provides increased stability.Tested for various loadings over a wide range.

Reliable for the entire operational range, from no load to full load, and anything in between.

Taperland Thrusting
And Journal Bearing

Bison turbo' s specially designed thrust bearing can provide up to 3 times extra loads when compared with traditional thrust bearing while low speed pinion can withstand greater power loads. Both features are essential for the outstanding stability during operation.

Capacity Control

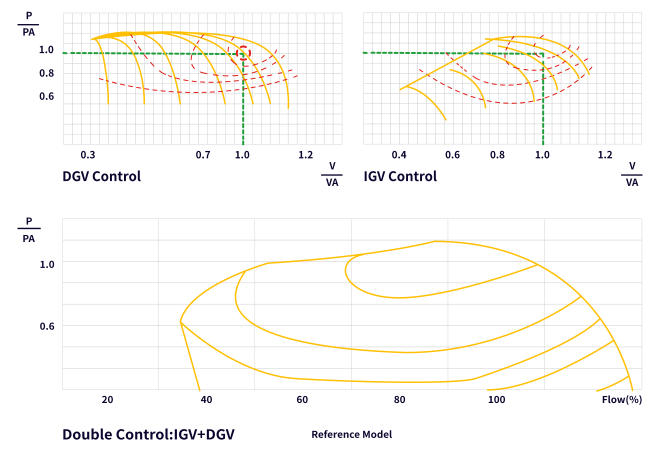

Bison turbo blowers are designed to utilize variable Inlet Guide Vanes (IGV), variable Diffuser Guide Vanes (DGV) or a combination of IGV and DGV configuration for capacity control and provide stable partial load performance. The variable IGV has a wide operating range while variable DGV offers efficient single blower control.

scroll

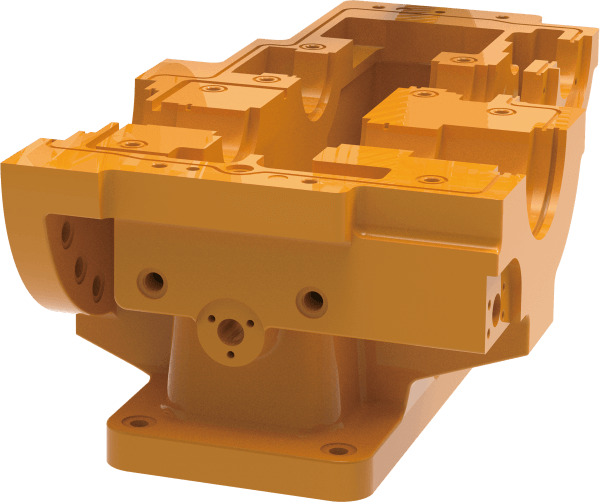

The Drive System

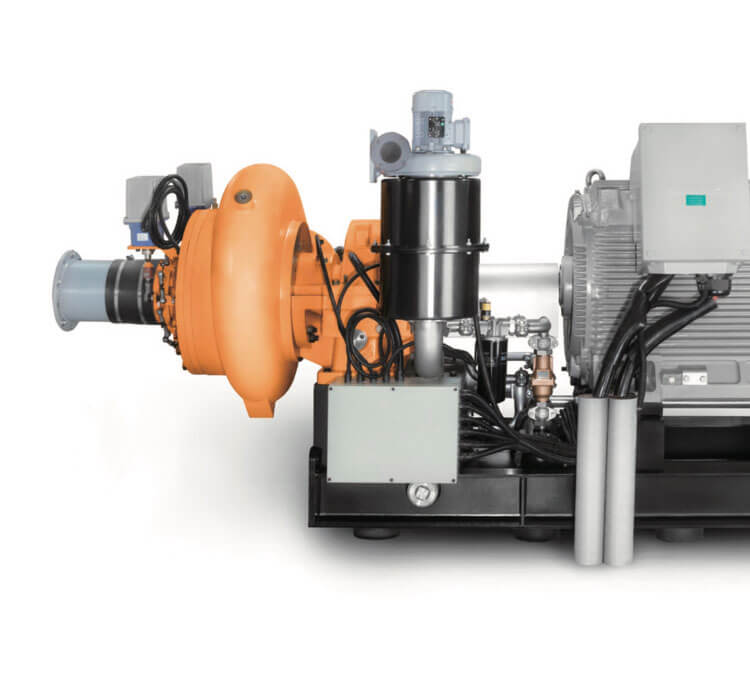

INTEGRATED CENTRIFUGAL
BLOWER TECHNOLOGIES

THE DRIVE SYSTE

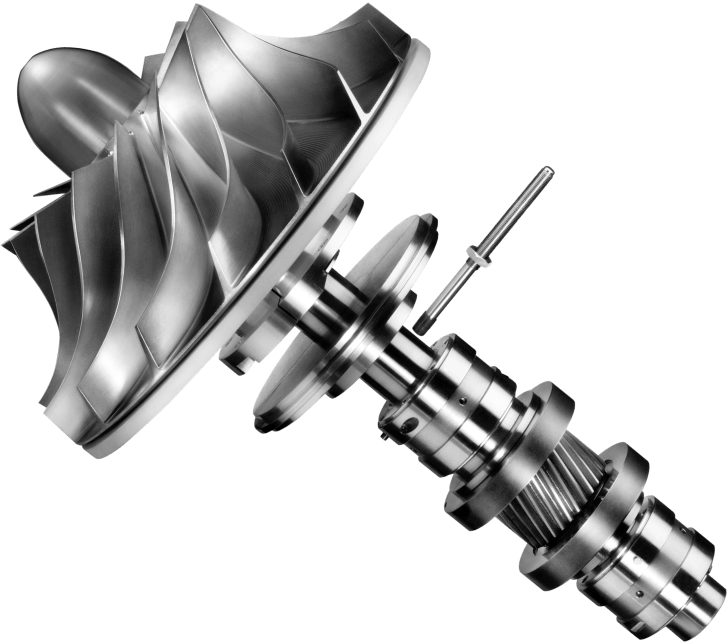

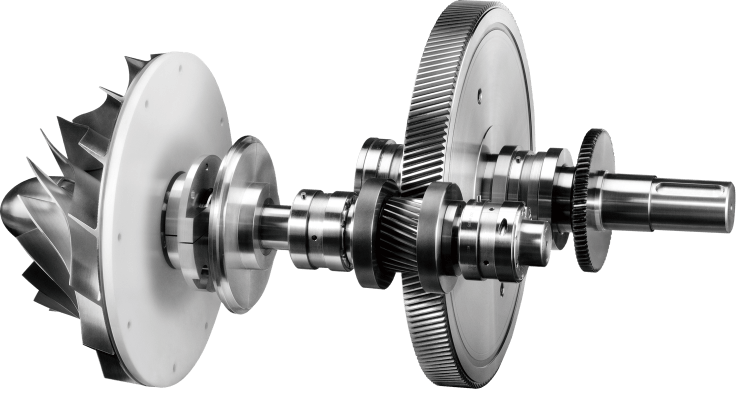

The rotor assembly is designed and engineered to meet or exceed AGMA Q13 standard. The helical assembly offers smooth high-speed operation. Precision and quality engineering ensures the assembly is well balanced to minimize or eliminate vibration.

GEAR SET

INTEGRATED CENTRIFUGAL BLOWER TECHNOLOGIES

innovation for efficiency

Bison turbo's integrated centrifugal blower is designed with one thing in mind, to provide a highly efficient and optimum product. Coupling the latest blower technology and bison turbo's innovative design team, the bison turbo integrated centrifugal blower exceeds previous models in terms of power optimization and energy efficiency, while at the same time reducing cost.

AERODYNAMIC ENGINEERING DESIGN
Lower Pneumatic Loss

EXCELLENT AERODYNAMIC PERFORMANCE
Efficiency Over 85%

DUAL AIR SEALING DESIGN
Theoretical Leakage less than 0.16Nm3/min

LUBRICANT FLOW
Lower Lubricant Flow-0.5l/s
Lower Power Consumption-1.7kW

HIRTH CONNECTION
Alignment Deviation Less Than 1μm

AGMA Q13 STANDARD

THE IMPELLER

Designed For High Efficiency And Reliability

-Proven reliability and enhanced efficiency
-Designed specifically to meet aeration process requirements
-Tested to comply with all relevant standards

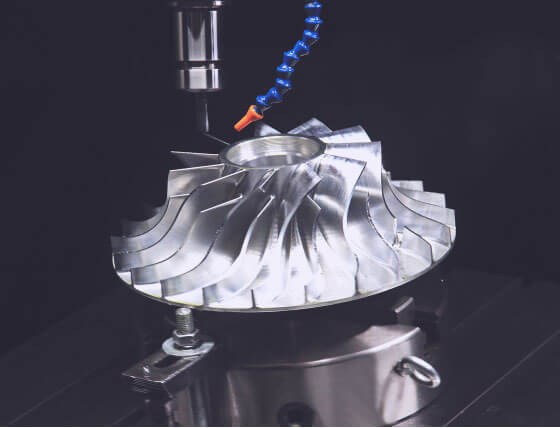

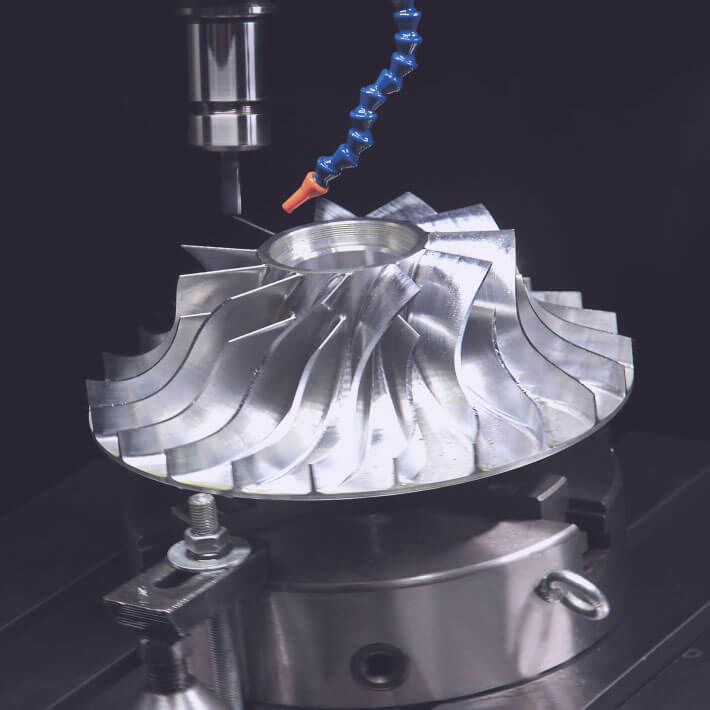

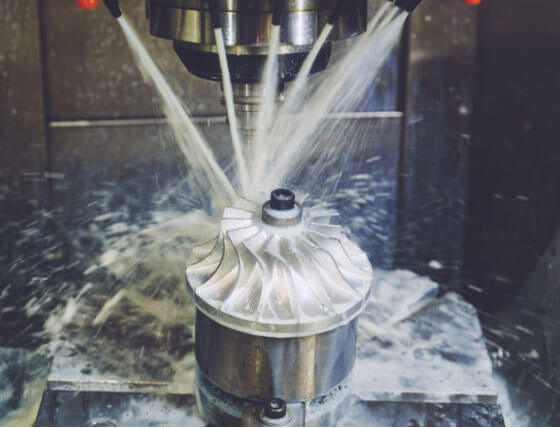

Precision Manufacturing for
the best quality

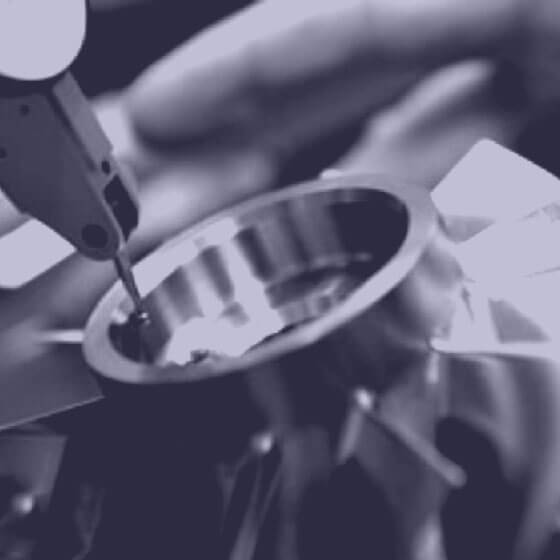

Precision Manufacturing for
the best quality

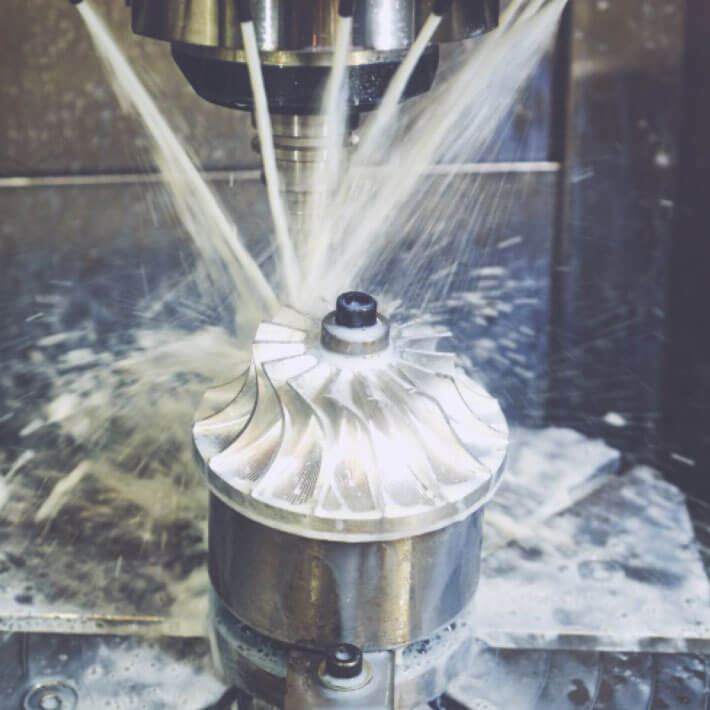

Precision Manufacturing for
the best quality

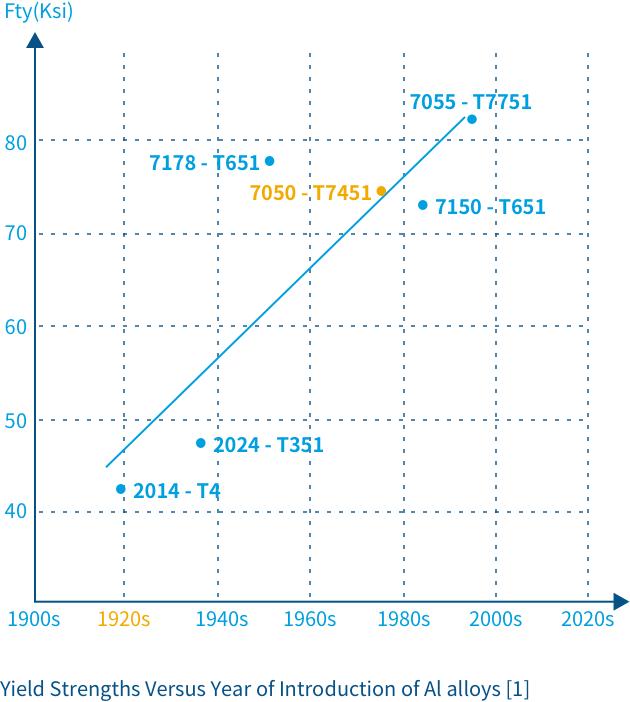

ASTM 7000 Series Aluminum Alloy:

Superior strength and durability

Hirth Serration Connection

Precision engineered with
attention to detail

CATERING FOR
DIFFERENT CAPACITY NEEDS

Bison turbo Integrated Centrifugal Blower is designed to cater for the different capacity needs of a waste water treatment plant. The blower can be equipped with various capacity control options to meet the demands of specific discharge pressure and volume. Flexibility and efficiency is an integral part of the bison Turbo blower.

Capacity Control

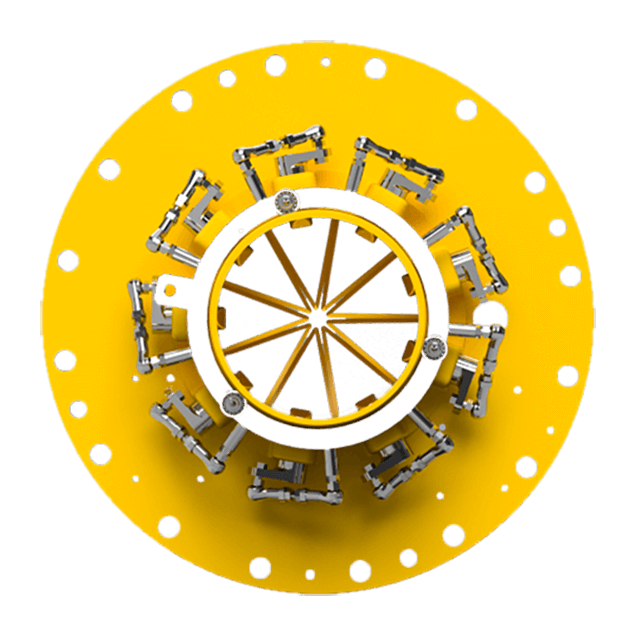

A variable diffuser-
guide vane DGV
A variable inlet-
guide vane IGV

A variable inlet-guide vane IGV

THE DRIVE SYSTEM

Comprehensive protection and control

Vibration sensor installed between
tilting pad bearing and oil sealing
provides constant monitoring of the
pinion’s operation condition to
protect the rotor assembly.

Modulating Blow-
off Control

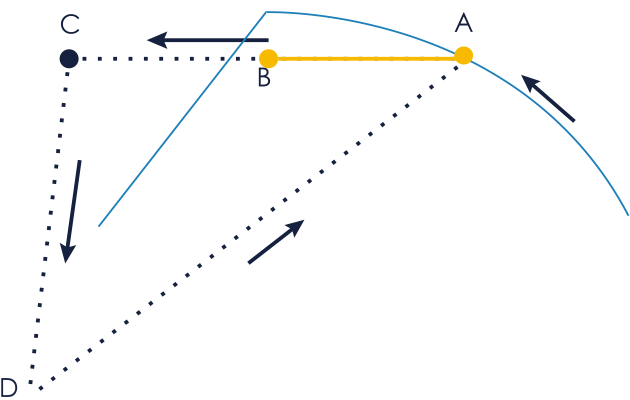

Blow-off silencer is used as a control mechanism to maintain constant pressure. This prevents frequent blower stop-start as excess gas is discharged through the blow-off silencer when the pressure reaches critical point.

Temperature Sensor monitors the change of
temperature in the tilting pad bearing to ensure a
safe operation.

INDEPENDENT LOCAL
CONTROL SYSTEM

Programmable logic control system
provides optimal functionality and
practicality for the bison turbo blower.

PLC PLC Panel

Allen-Bradley CompactLogix platform

16 digital inputs |16 digital outputs|16 analog
inputs |2 analog outputs

Performance control

Anti-surge control

Alarm history recall and record

Supersized panel 1000*800mm

7" Colour touchscreen

Optional stainless steel enclosure available

USB port for data logging

Integrated auxiliary oil pump, oil mist fan and oil heater (option) distribution system

BISON TURBO
CONTROL
SYSTEM (BCS)

Designed to provide precise aeration.

Bison Turbo Blower's BCS Other Control System
Control Method Volume Control Pressure Control
Process Energy Loss No Loss 5-10KPa
Remote Control and Analysis Interface Standard Scope NA

QUALITY CONTROL AND
WARRANTY

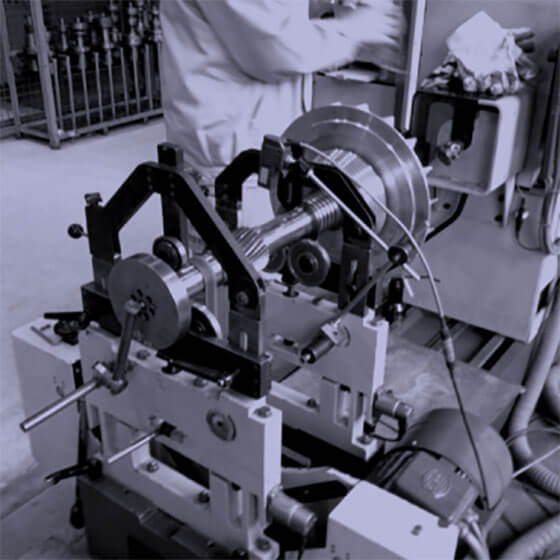

All bison turbo blowers are thoroughly and rigorously checked and tested before delivery. All tests are compliant with relevant standards such as PTC-10, API617/672. For quality assurance, bison turbo blowers can also undertake different simulated operating conditions that the customer may face.Bison turbo strives to deliver the best and most suitable product to the customers.

Bison turbo blowers
come with an extended 5 year air- end warranty (optional)

BISON TURBO INTEGRATED CENTRIFUGAL BLOWER TECHNICAL DATA
